Fabricate the Printed Circuit Boards (PCBs)

This guide will help you order the fabrication of your PCBs. The PCB files are located in your fork at kinetic-display\pcb. Follow the instructions below to place a separate order for each of the three Gerber files:

  • Gerber_KineticDisplay-Controller
  • Gerber_KineticDisplay-PowerSystem
  • Gerber_KineticDisplay-SingleDigit

You will need to order more PCBs than required for this project because most PCB fabrication facilities have a minimum order quantity of five. Be sure to also order the remaining components and materials from the Bill of Materials (BOM).

Steps to Order PCBs

  1. Open your browser and navigate to https://jlcpcb.com/. Create an account if you do not already have one, then click the Order now button.
    Click the 'order now' button
  2. Upload the Gerber file by clicking the Add Gerber file button. Repeat this step through step 4 for each of the three Gerber files found under the kinetic-display\pcb directory.

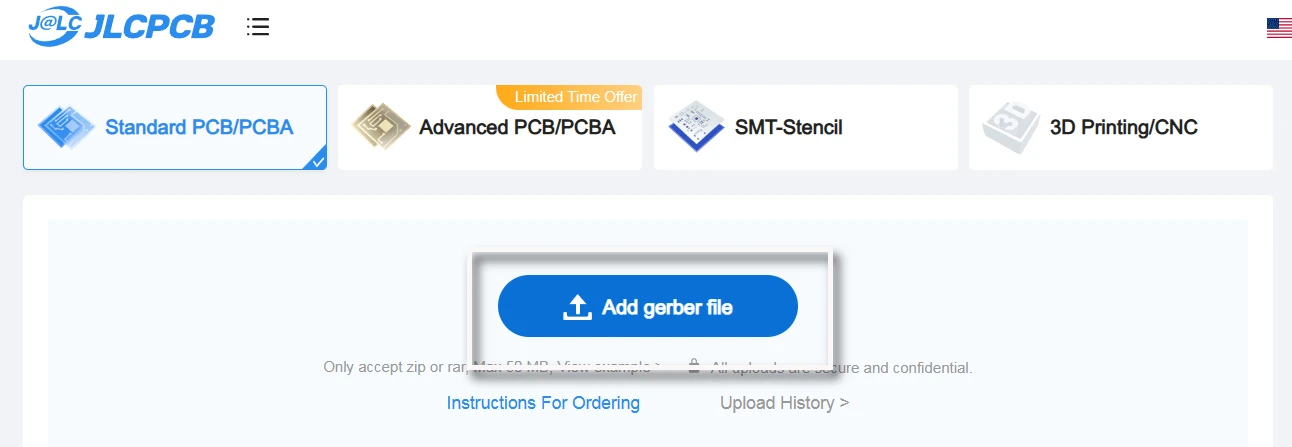

    Click the 'Add Gerber file' button
  3. Use all the default settings except change the PCB color to white to enhance the luminosity of the LEDs.

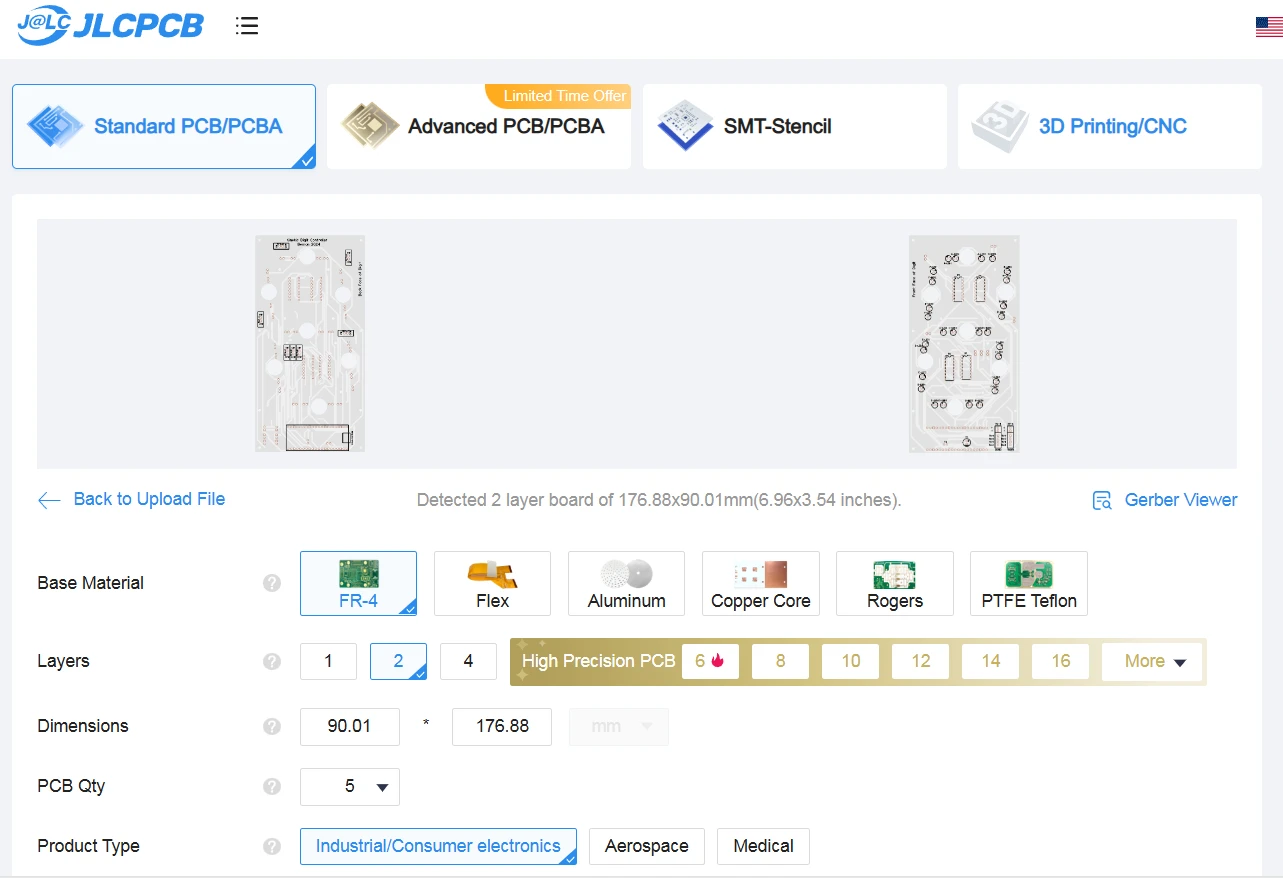

    Use the default settings except set the PCB color to white

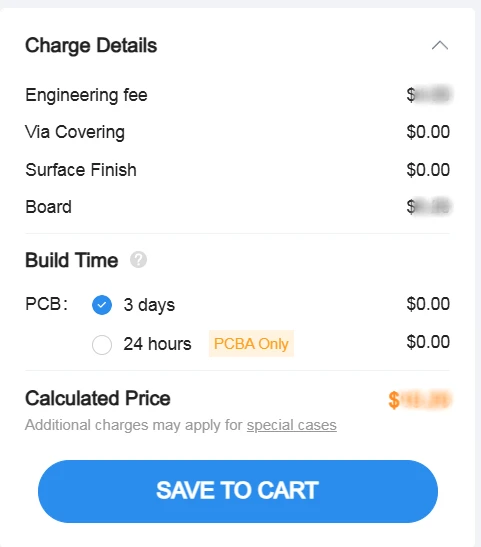

  4. Click the SAVE TO CART button and complete the order by following the shipping and payment steps in the wizard.
    Use the default settings except set the PCB color to white

Notes

  • PCB Color: White PCBs are recommended to maximize LED brightness and improve the overall aesthetic of the display.
  • Minimum Order Quantity: Most PCB manufacturers require a minimum order of five PCBs per design. This means you will receive extra PCBs, which can be used as spares or for future projects.
  • Shipping and Lead Time: Be sure to check the estimated shipping time and lead time for fabrication when placing your order.

Congratulations on ordering your PCBs!
